Crystalyte UFO Motor Series
In 2017, Crystalyte
publicized New H+
Plug Series motors with a nickname of " UFO Motor ".
The designer got the idea from the Unidentified
Flying Object , the UFO's shape and set this as a great one to start with.
UFO Motors Models
:
The H+ UFO motors with 3
standard stators high : 35mm + 40mm + 55mm
So here are 3 series
models :
| 35mm
Stator & Magnets |
40mm
Stator & Magnets |
| Models
|
Part No. |
Models
|
Part No. |
|
UFO-3540 Front
|
Pn. UFO3540F
|
UFO-4080 Rear
|
Pn. UFO4080R
|
|
UFO-3540 Rear
|
Pn. UFO3549R
|
UFO-40100 Rear
|
Pn. UFO40100R
|
|
UFO-3525 Front
|
Pn. UFO3525F
|
* Rear Motor only
|
|
|
UFO-3525 Rear
|
Pn. UFO3525R
|
|
|
Information of UFO Motors
-
UFO 35 Series
Front & Rear Wheel Motor
-
35mm stator and 35mm
magnets materials
-
Speed :
-
UFO-3540 => 40km/hr 36V
system
-
UFO- 3525 => 25km/hr
36V system
-
Motor dropout front wheel
100mm / M14 axle & rear 135mm dropout / M14 axle
| UFO - 35 Series
Rear Motors |
26" Rim UFO - 35 Rear Motor |
UFO - 35 Rear Motor Dimension |
 |
 |
 |
Front and Rear UFO 35xx
Series dimension below :
|
UFO - 35 Series Front Motors |
UFO - 35 Front Motor Dimension |
 |
 |

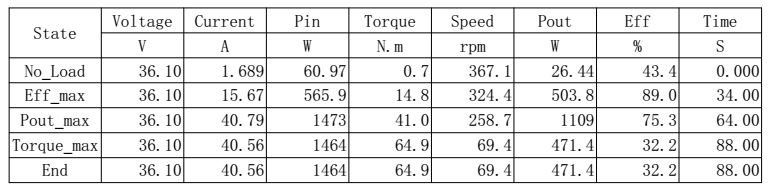

UFO-3540 Motor
Data Sheet :

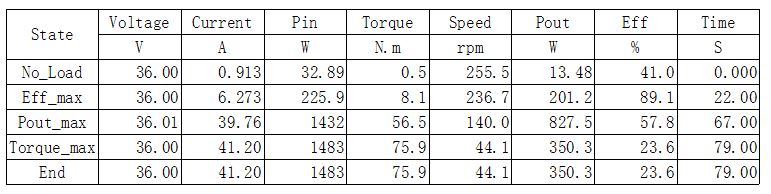

UFO-3525 Motor
Data Sheet :
UFO-40 Series
Front & Rear Wheel Motor
40mm stator and 40mm
magnet materials
Speed :
UFO-4080 =>80km/hr
72V
system
UFO-40100 =>100km/hr
72V system
Motor axle dropout
140mm / M14 axle
-
| UFO - 40 Series Motor Dimension |
UFO -
40xx Series Motor |
 |
 |
UFO motors information : Aside
from the special housing design, here are some of the following part which have
been upgrade.
-
UFO motors with
aluminum stator
-
0.35mm lamination
sheet / grade 290 ~ 300
-
Stator with a diameter
28mm hole, in order to pass through bigger axle and bigger motor cable.
